Our business covers tinplate, TFS, laminated steel, printing and EOE.
Features :
100% Tinplate sheet from Baosteel, with beautiful ,elegant design structural precision and good sealing performance
Top machinery: Minster, Golden Eagle, Slac, Omicron
Strict quality control and testing equipment in lining and post repair coating process
Health and safety, non-toxic , odorless
Implementation of the HACCP system
OEM service available

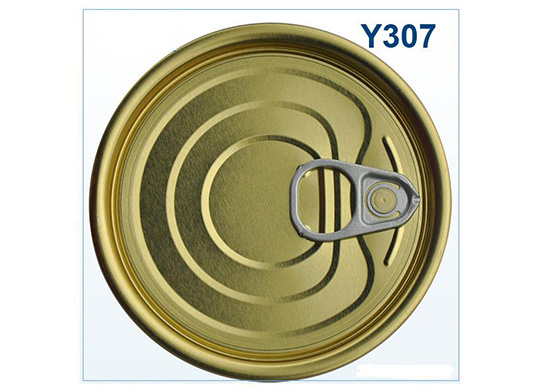

Y307
Model number | 307# |
Outside Diameter (mm) | 93.2±0.20 |
Curl Height (mm) | 2.00±0.20 |
Countersink Depth (mm) | 4.75±0.15 |
Plane Depth (mm) | 3.70±0.15 |
Seaming Compound Weight (mm) | 66±10 |
Compressive Strength Psi | ≥220 |
Pop N | 20-35 |
Tear N | 60-95 |
Inside Diameter of Empty (mm) | Φ 83.3 |
Uses:
1.Epoxy phenolic including Gold lacquer and Clear lacquer (suitable for normal food such fruit and vegtables);
2.Organosol lacquer (suitable for acidic food such as tomato paste)
3.Aluminize lacquer (suitable for fish or meat).

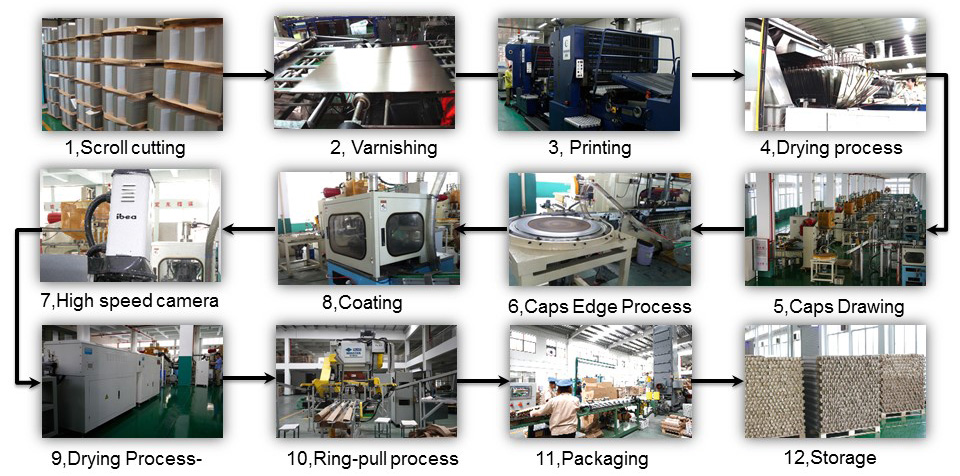

Production Process
Packaging:
 |  |  |
Standard
Item No. | DIM(mm) | Thickness (mm) | Temper | Ouantity(20GP container) | Lacquer |
Y202 | 52.3 | 0.18 | T4/T5 | 2500000 | Gold /White/ Aluminumpaste/Organosol |
Y209 | 62.3 | 0.18 | T4/T5 | 1975680 | |
Y211 | 65.3 | 0.18 | T4/T5 | 1975680 | |
Y214 | 69.9 | 0.19 | T4/T5 | 1834560 | |
Y300 | 72.9 | 0.2 | T4/T5 | 1703520 | |
Y305 | 80.3 | 0.2 | T4/T5 | 1150000 | |
Y307 | 83.3 | 0.2 | T4/T5 | 1219680 | |
Y315 | 95.5 | 0.2 | T4/T5 | 1000000 | |
Y401 | 98.9 | 0.21 | T4/T5 | 907200 | |
Y502 | 126.5 | 0.23 | T4/T5 | 510000 | |
Y603 | 153.4 | 0.24 | T4/T5 | 360000 |
